Ace the Chase

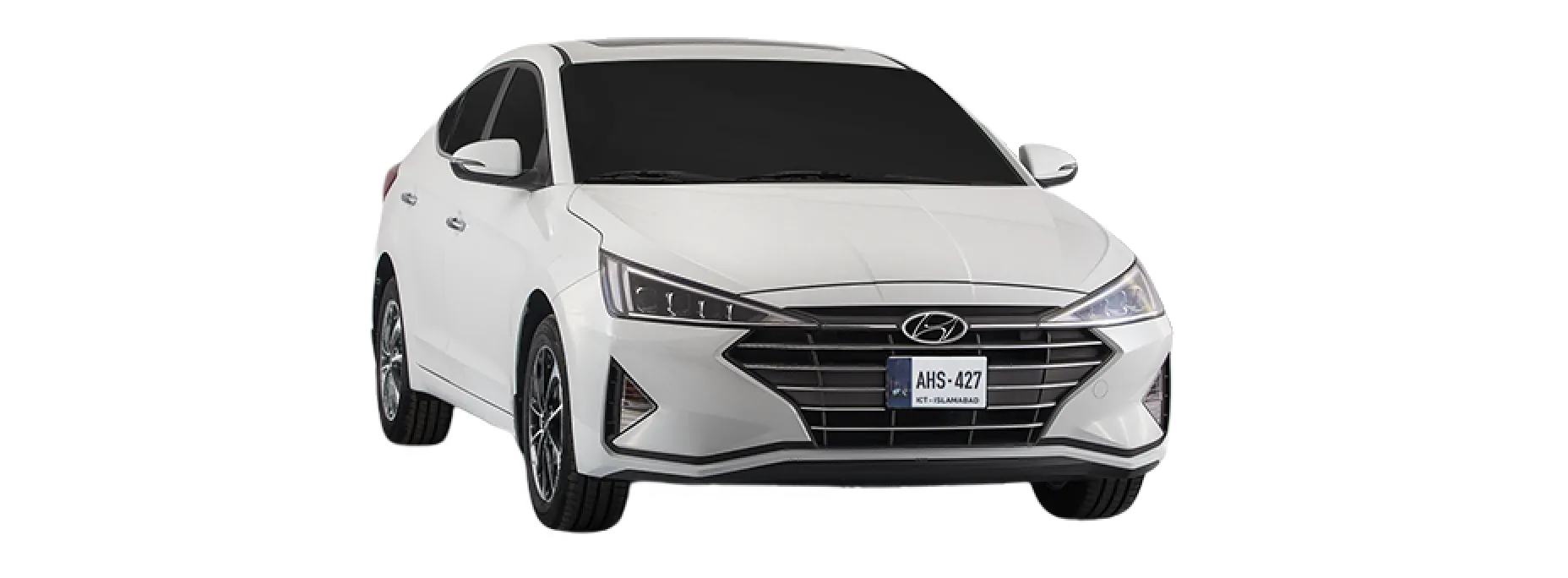

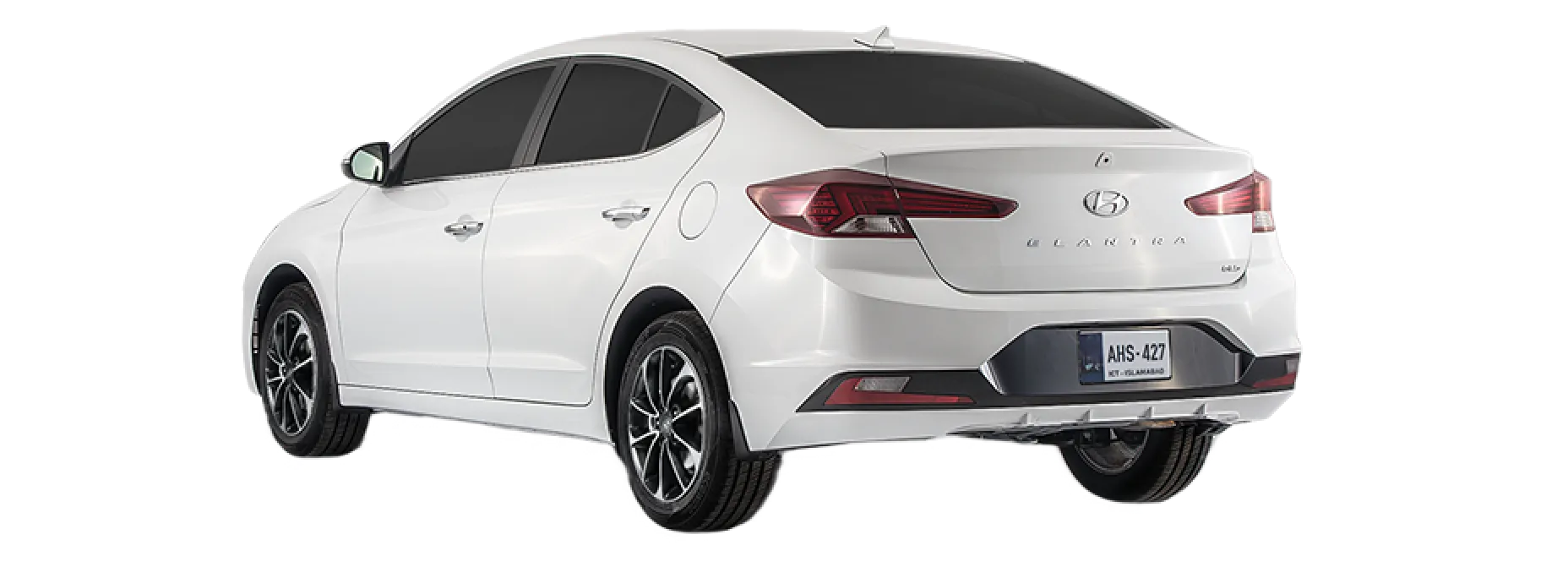

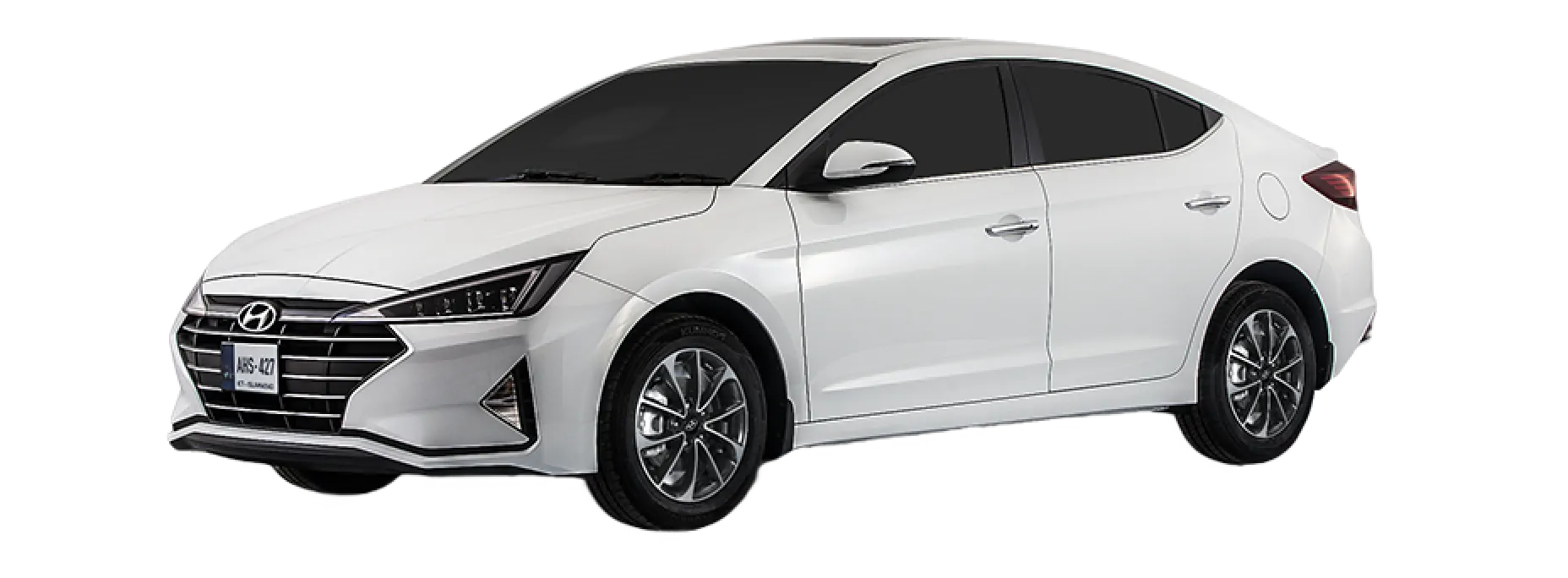

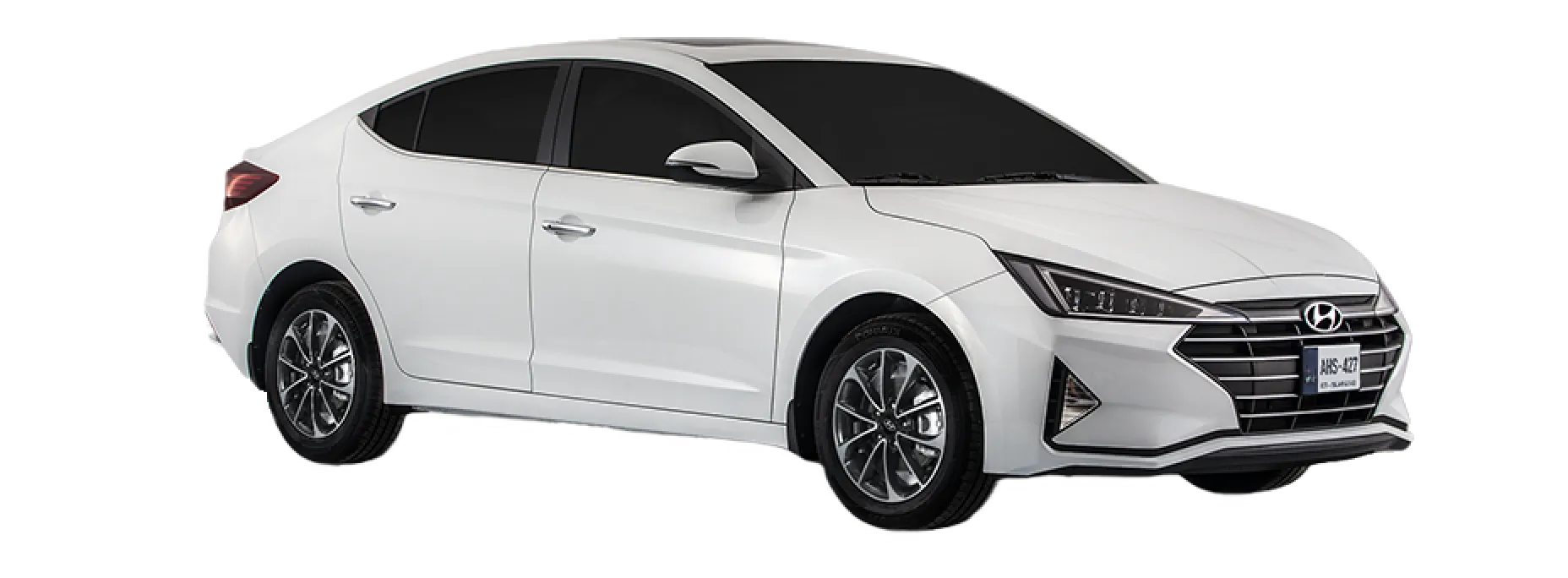

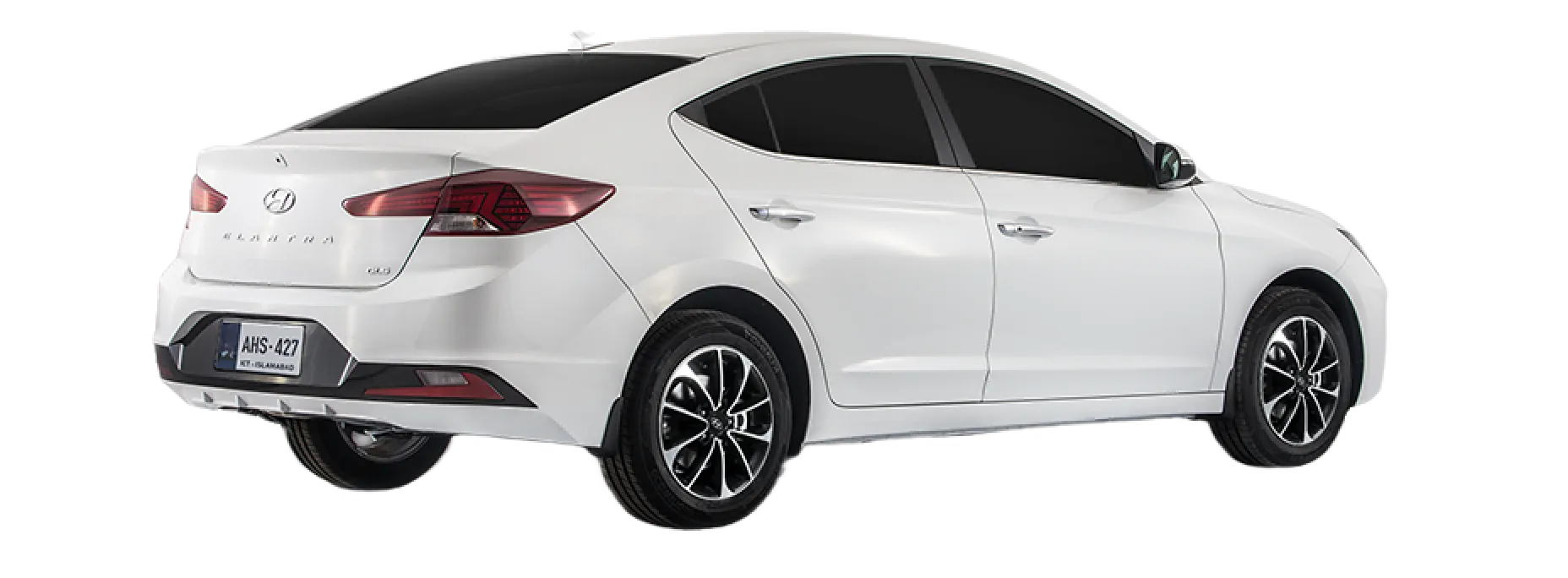

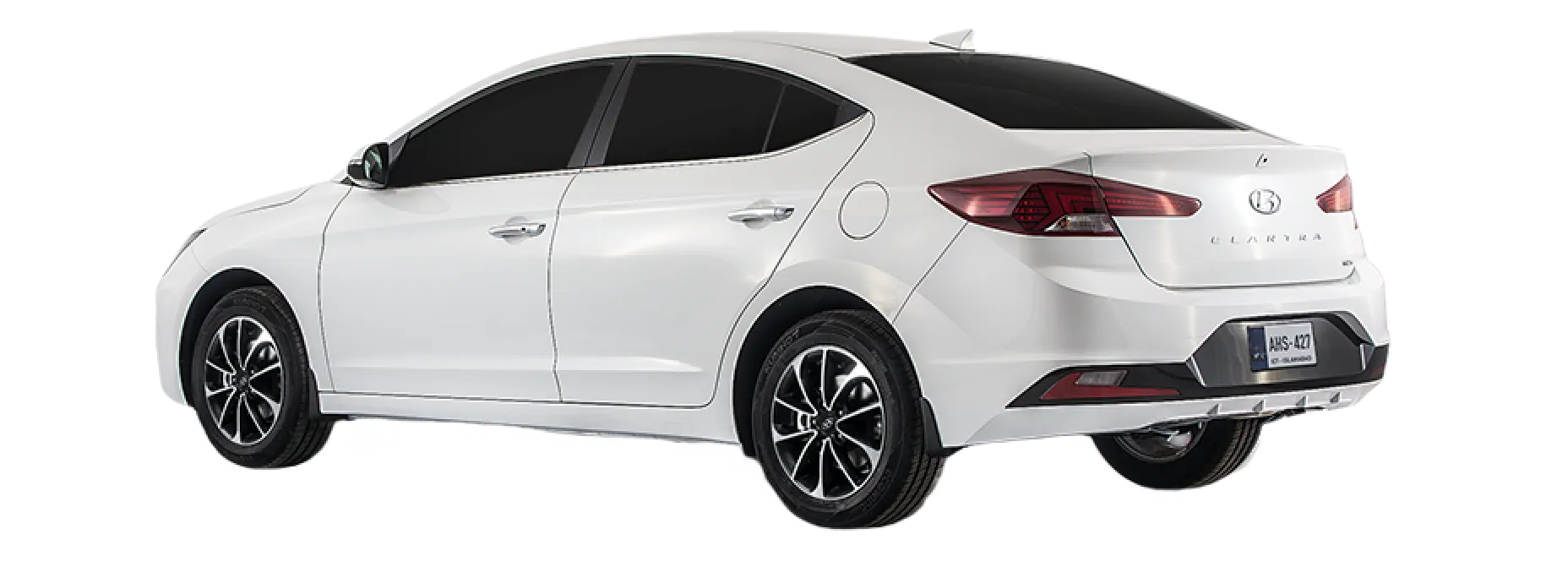

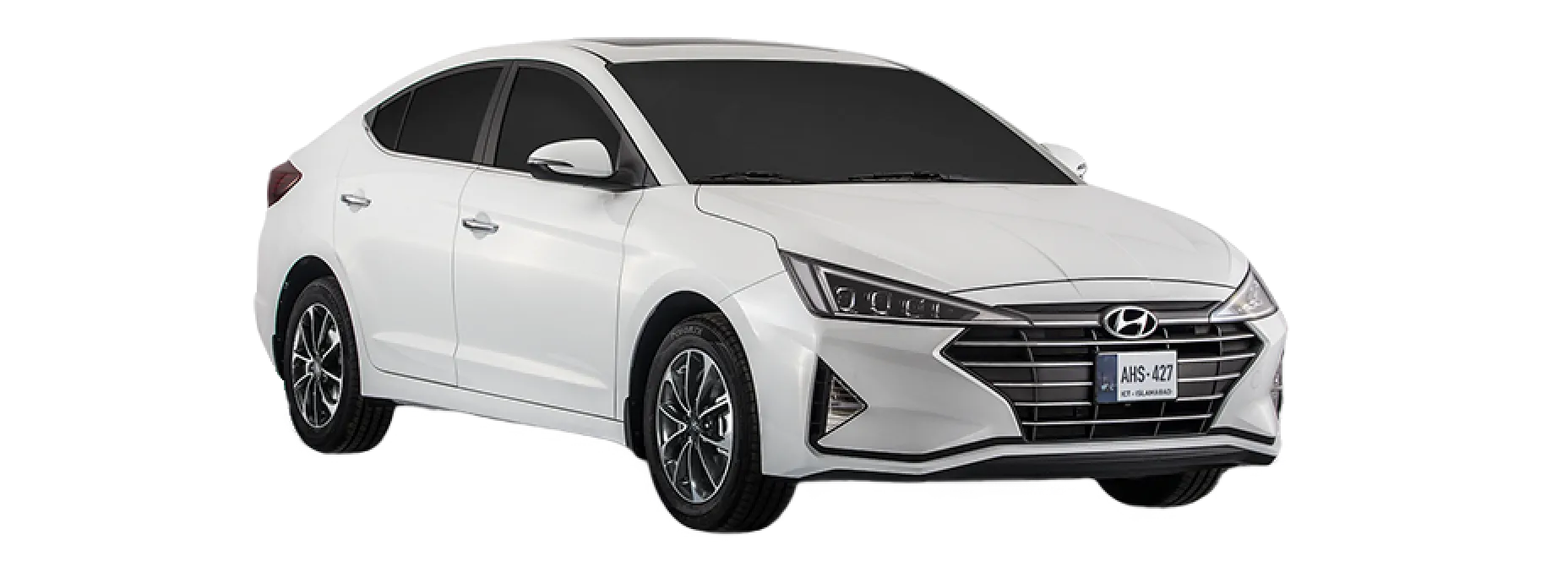

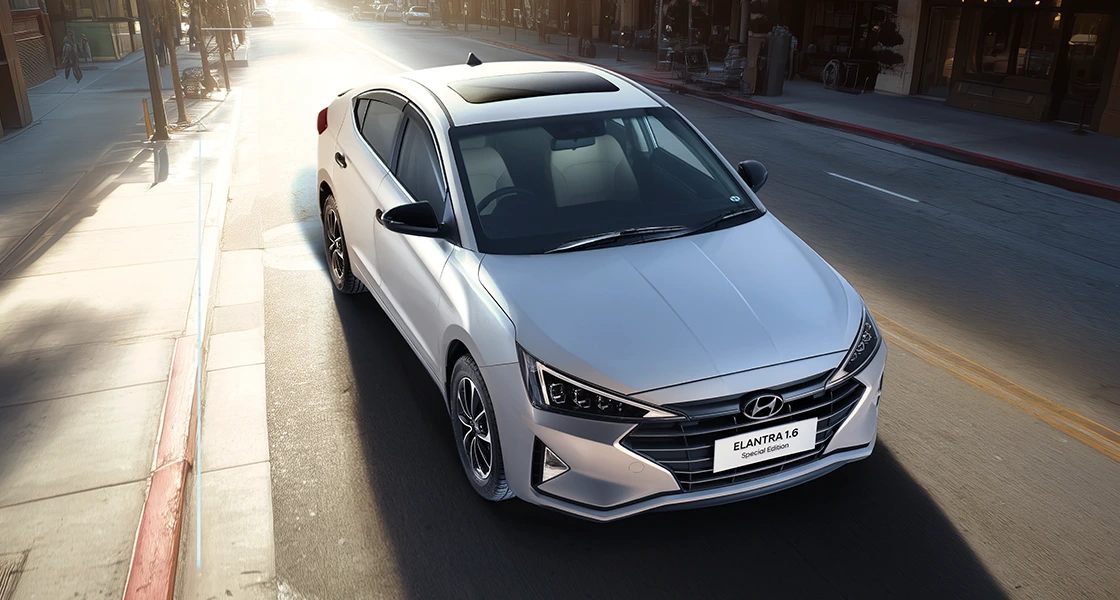

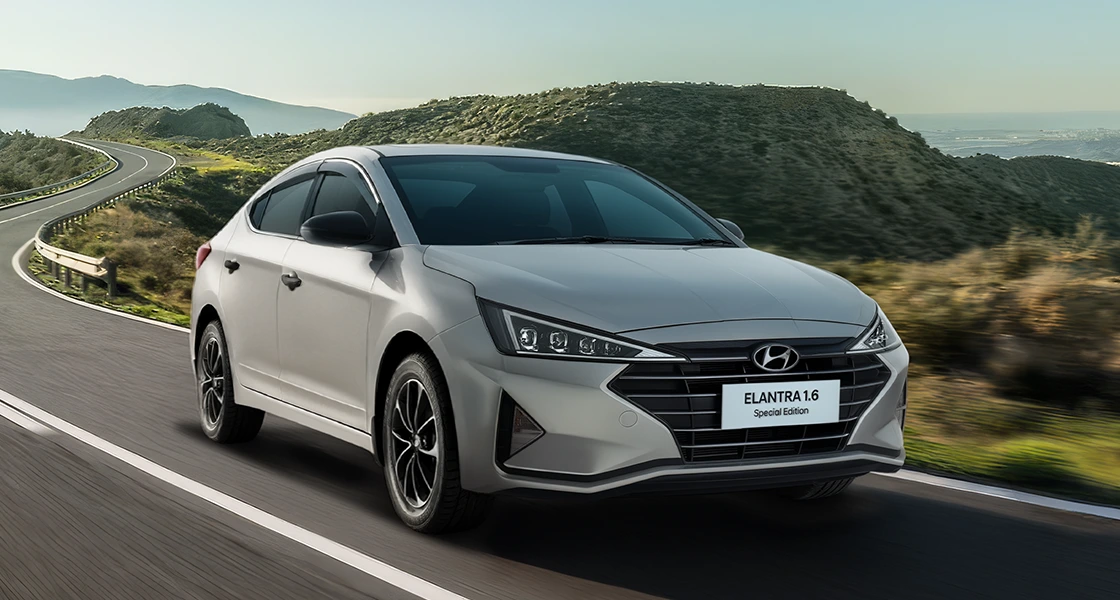

The new ELANTRA introduces “DYNAMIC PRECISION”, the identity of a brand new exterior style through Fluidic Sculpture 2.0. The exterior comprises of a dynamic and sophisticated profile and completes the modern and future-oriented design. Opt for Hyundai ELANTRA, your next move towards victory.
From the basic layout to the execution of the details, the ELANTRA’s interior design reveals itself to be roomy, comfortable and simply brilliant.
The view before the view. Settle affront a leather stitched tilt and telescopic steering wheel with a horizontally scaped button arrangement for driver convenience.
Dare yourself to be the heroic front of all edeavors that pushes beyond the ordinary. Be bolder, Be fearless Be the finish line in the race to success.

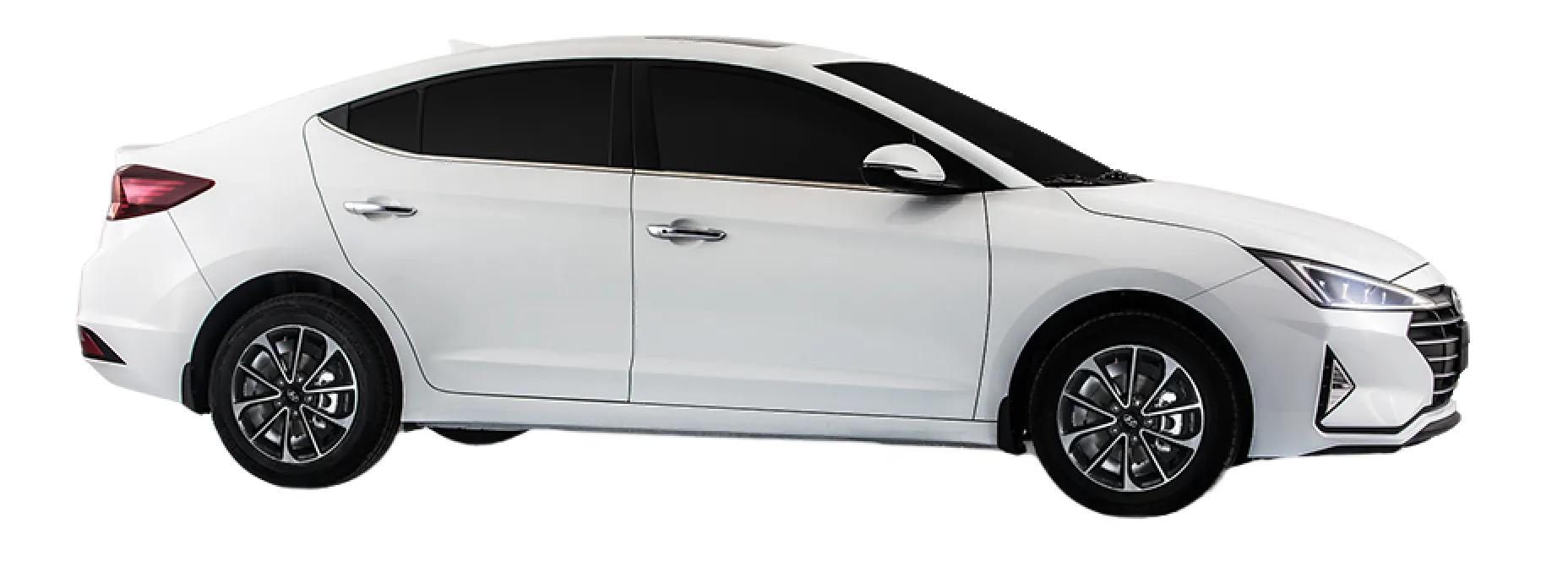

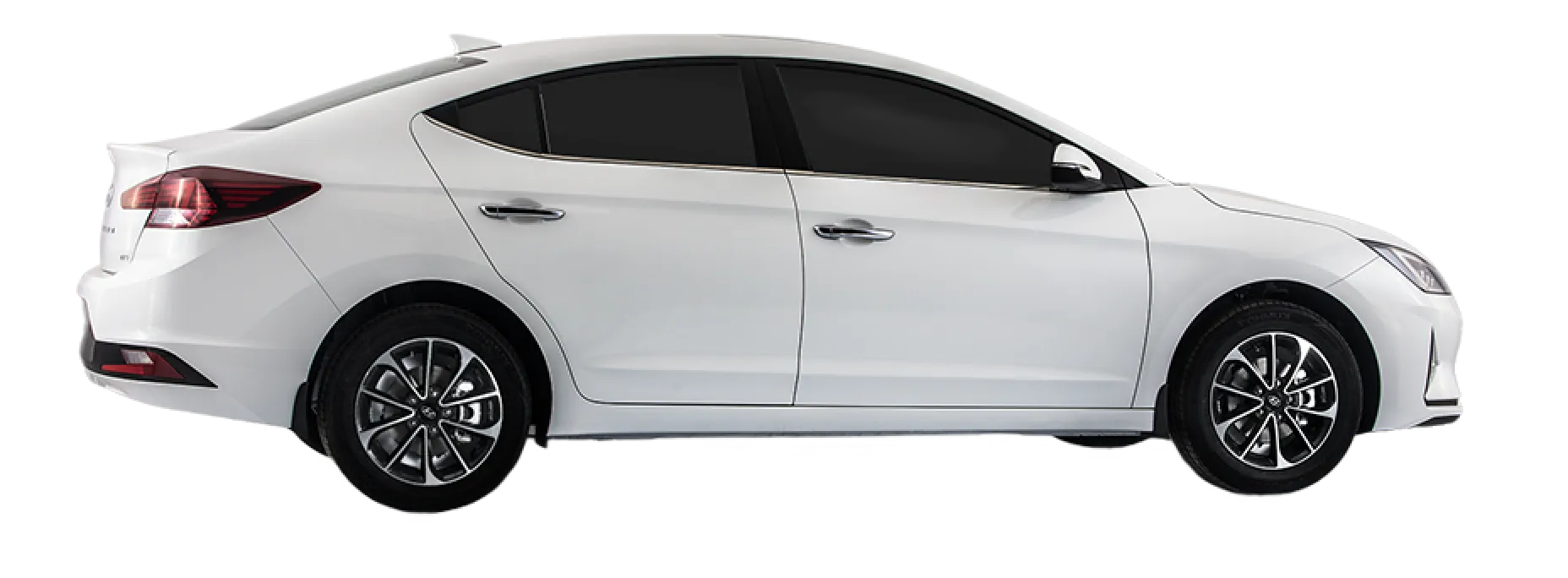

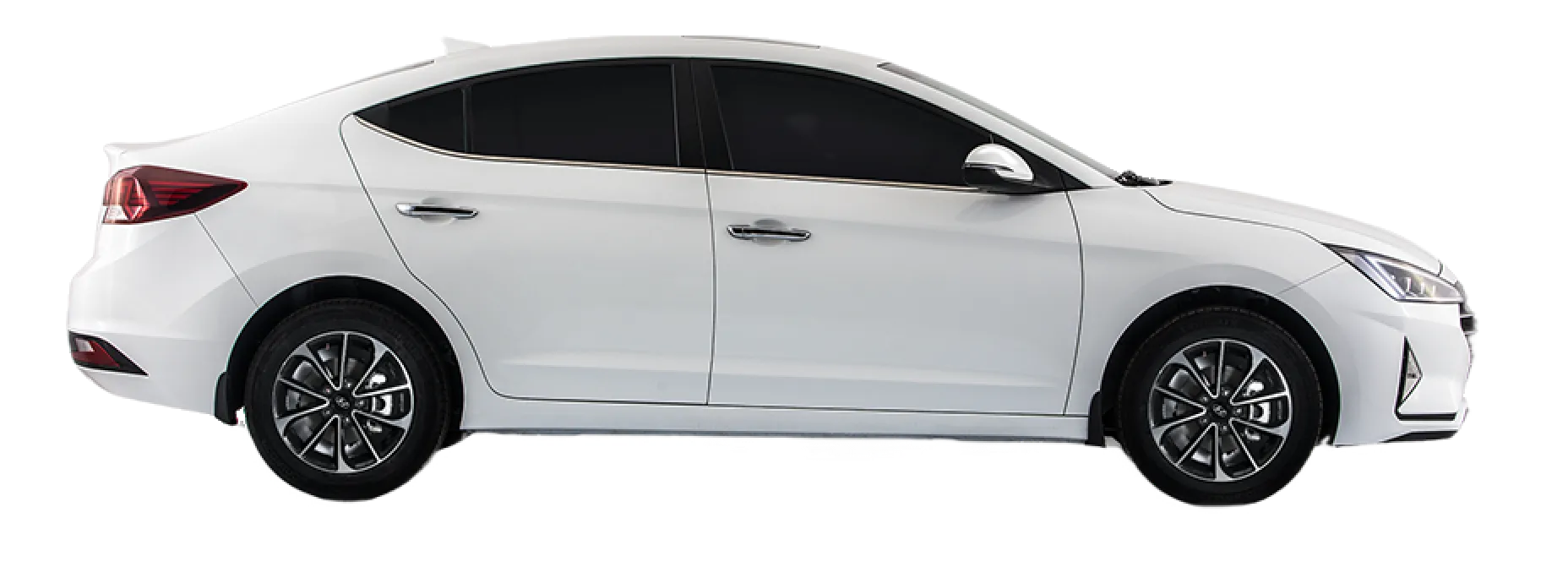

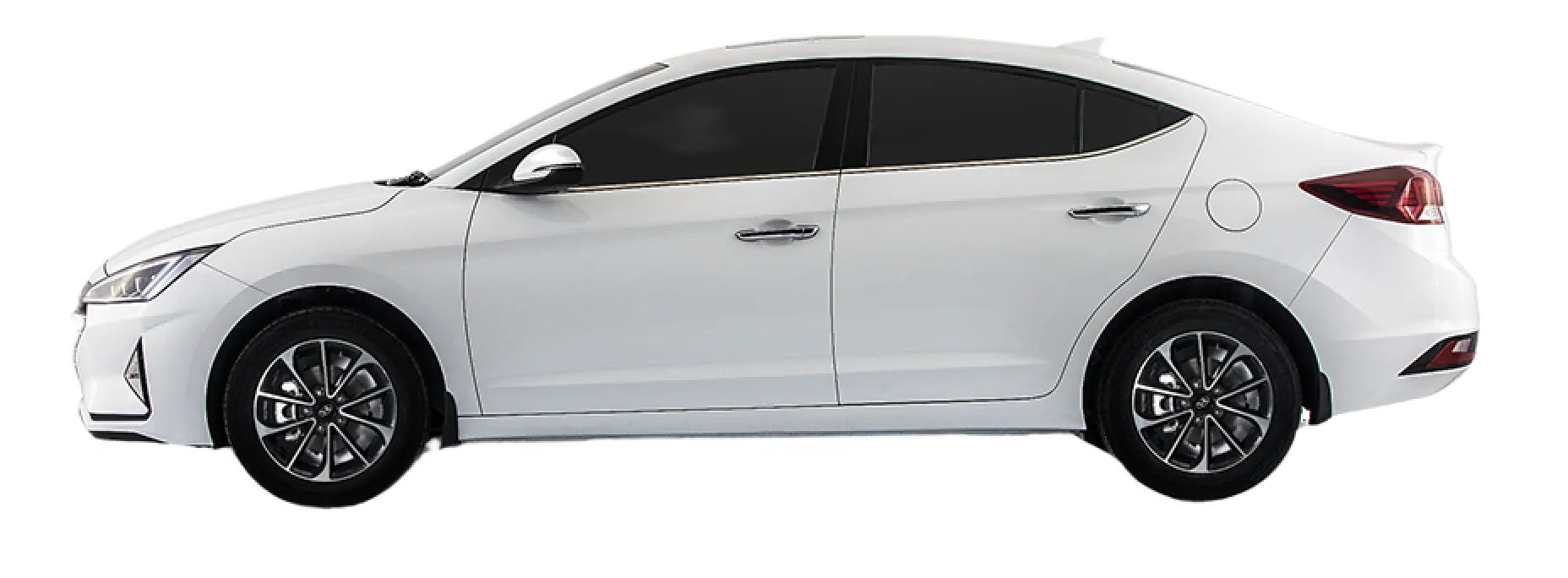

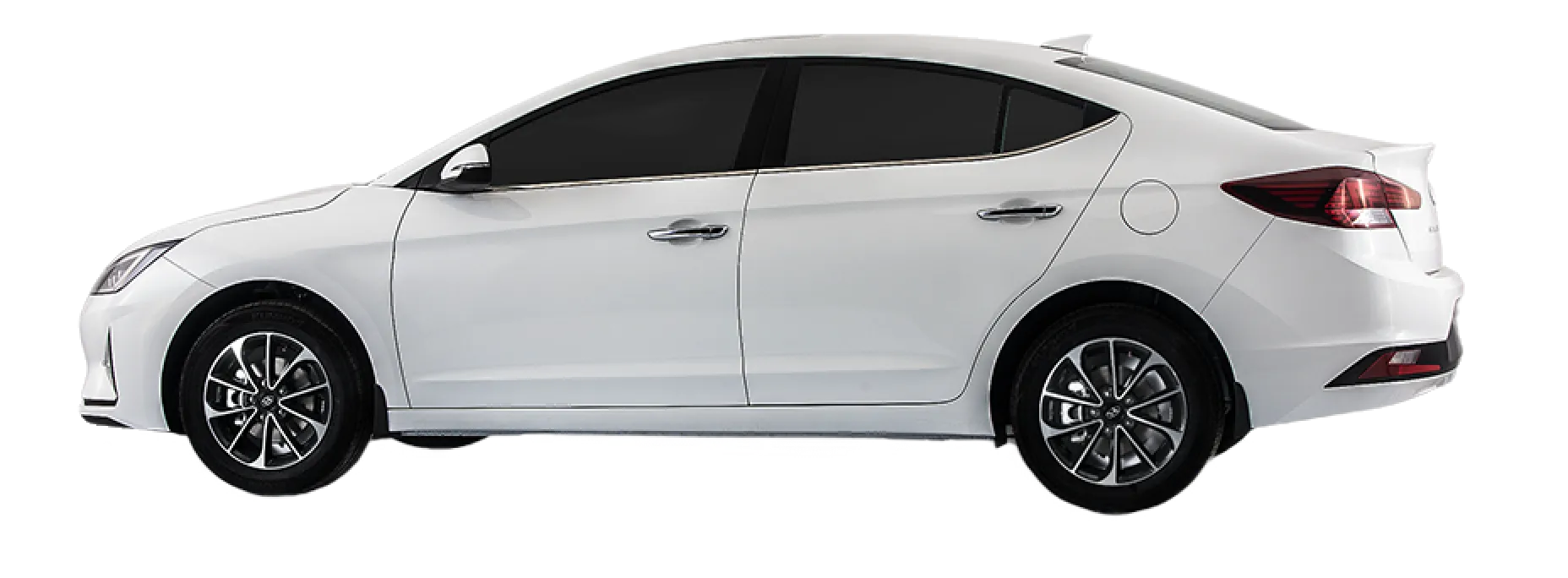

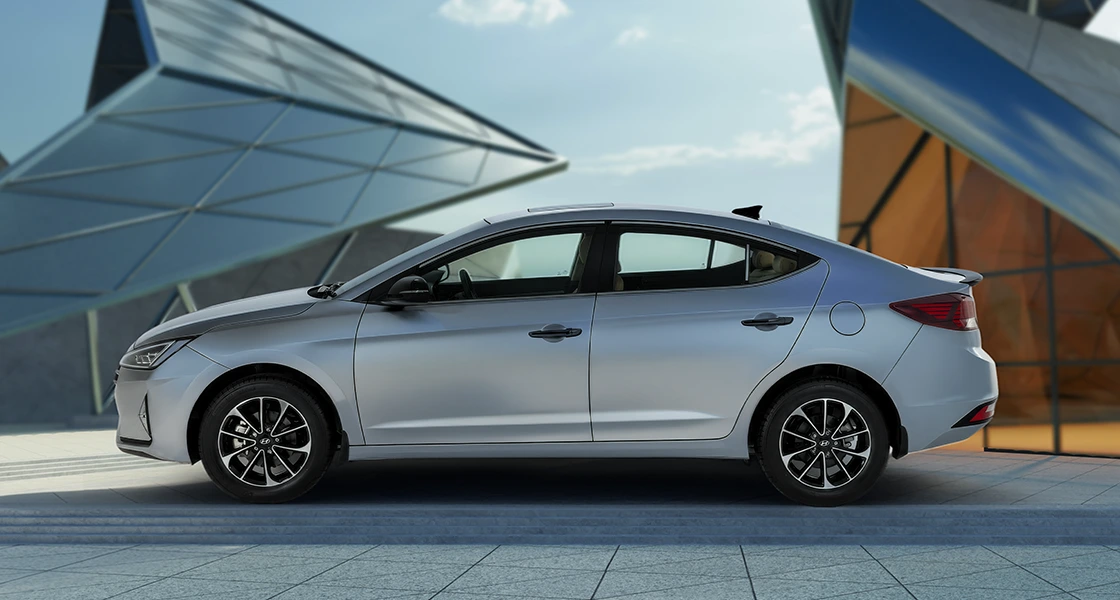

A profile packed with noticeably remarkable features are all what make the ELANTRA a standout car.
Displaying confident mastery over materials and forms, the cabin space exudes an air of inviting comfort and luxurious exclusivity.
Roomy, comfortable and perfectly designed, the new Elantra’s interior has been perfectly thought out.
Driver centric horizontal layout, arrangement of buttons grouped by function and ergonomic design redefine the interior experience in the ELANTRA.
The Hyundai ELANTRA comes with a 2.0 MPi gasoline that makes it the most powerful in its class. This allows the driver to accelerate whenever and as much desired.
Offering dynamic & efficient driving performance with the help of rapid-shift and optimized gear-ratio, the ELANTRA offers four drive modes and an easy gear shift.
Category
Product label
Model name
Seats
Sedan
Elantra 1.6 GL
Elantra
5
Exterior L x W x H (mm)
4620 x 1800 x 1450
Wheelbase (mm)
2700
Kerb Weight (kg)
1225 – 1342
Gross Vehicle Weight (kg)
1760
Minimum Turning Radius (m)
5.3
Number of Doors
4 doors
Number of Seating Rows
2 rows
Luggage Compartment Capacity (Ltr.)
407
Engine
1.6 MPi Gasoline Engine
Displacement (cc)
1591
Max Power kW (HP) / rpm
94 (126)/6300
Max Torque N-m / rpm
155/4850
Engine Type
DOHC 16-Valve
Cylinders
In-Line 4-Cylinder
Compression Ratio
10.5
Fuel Type
Petrol
Emission Standard
Euro 2
Fuel System
MPi
Fuel Tank Capacity (Ltr.)
50
Drive System
2WD
Transmission
6-Speed A/T
Front
MacPherson Strut
Rear
Torsion Beam
Anti-Lock Braking System (ABS)
Available
Front
Ventilated Disc
Rear
Disc 14″
Parking Brake
Hand Parking
Front Radiator Grille
Chrome Coating
Mud Guard (Front & Rear)
Available
Front
Body Colour
Rear
Body Colour
Head Lamp
Tetra LED headlamps
Daytime Running Lamp
LED
Rear Combination Lamp
LED
Finish
Body Colour
Electrically Adjustable
Available
Electrically Retractable
Available
with LED Turn Signal
Available
Door Trim
Hi- Fabric + PVC
Map Pocket
Available
Door Outside Handle
Chrome Coating
Door Inside Handle
Silver Paint
Power Window
Available
Side Moulding
Beltline ; Chrome Coating
Rear View Camera
Available – Dynamic Guidelines
Wheel Type
Alloy Wheel
Wheel Size
16″
Tyre Size
215/55R16
Full Size Wheel & Tyre
Full Size
Wheel Type
Alloy Wheel
Sunroof
Available
Vanity Mirror with Illumination
Available (without lamp)
Antenna
Shark fin
Inside Rear View Mirror
Day & Night
Material
3-Spoke Poly Urethane
Power Steering
Available
Adjustment
Tilt & Telescopic
Steering Switches
Audio + MID+ Voice Command
TGS Knob
Soft PVC
Front Personal Lamp
Available (with Sunglasses holder)
Room Lamp
Available
Cluster Type
Supervision w/ 4.2″ TFT LCD
Speedometer
Optitron Meter + Digital Speedometer
In-dash Cluster Illumination Control
Available
Tachometer
Available
Central Door Locking
Available
Speed Sensing Door Lock
Available
Child Safety Lock
Available (Manual)
Remote Boot-Lid Opener
Available
Keyless Entry
Jack Knife
Burglar Alarm
Available
Seat Upholstery
Hi-Fabric
Headrest
Up/Down (D+P)
Seat Height Adjuster
Driver only (Manual)
Centre Console Box
PVC Deluxe
Foot Rest
Available
Seat Back Pocket
Available
Headrest
Up/Down (LH/RH)
Armrest with Cup Holder
Available
Rear Seat Folding
60:40 Split folding Seats
AM / FM Radio
Available
MP3
Available
Screen
8″ Display
USB / AUX
Available
Bluetooth
Available
MyHyundai Application
Available
Number of Speakers
6
Air Conditioner
Available
Rear AC Ventilation
Available
Glass (Windshield/Front Rear Door/Backlite)
Glass
Immobilizer
Available
Air Bags
Driver + Passenger
Seat Belt Front
3 Point ELR x 2 with Pretensioner and Force Limiter
Seat Belt Rear
3 Point ELR x 2 + 2 Point NR
ISOFIX Seat Anchors
Available
Auto Light Control
Available
Trip Computer
Available
Seat Belt Warning
Available
Battery Charger
Available (USB only)
Headlight Delay
Available
Category
Product label
Model name
Seats
Sedan
Elantra 2.0 GLS
Elantra
5
Exterior L x W x H (mm)
4620 x 1800 x 1450
Wheelbase (mm)
2700
Kerb Weight (kg)
1255 – 1373
Gross Vehicle Weight (kg)
1780
Minimum Turning Radius (m)
5.3
Number of Doors
4 doors
Number of Seating Rows
2 rows
Luggage Compartment Capacity (Ltr.)
407
Engine
2.0 MPi Gasoline Engine
Displacement (cc)
1999
Max Power kW (HP) / rpm
115 (154)/6200
Max Torque N-m / rpm
195/4500
Engine Type
DOHC 16-Valve w/ Dual CVVT
Cylinders
In-Line 4-Cylinder
Compression Ratio
10.3
Fuel Type
Petrol
Emission Standard
Euro 2
Fuel System
MPi
Fuel Tank Capacity (Ltr.)
50
Drive System
2WD
Transmission
6-Speed A/T
Drive Mode Select
Sports/ Smart/ Eco/ Normal
Front
MacPherson Strut
Rear
Torsion Beam
Anti-Lock Braking System (ABS)
Available
Front
Ventilated Disc
Rear
Disc 14″
Electronic Brake-Force Distribution (EBD)
Available
Brake Assist (BA)
Available
Parking Brake
Hand Parking
Front Radiator Grille
Chrome Coating
Mud Guard (Front & Rear)
Available
Front
Body Colour
Rear
Body Colour
Head Lamp
Tetra LED headlamps
Daytime Running Lamp
LED
Rear Combination Lamp
LED
Finish
Body Colour
Electrically Adjustable
Available
Electrically Retractable
Available
with LED Turn Signal
Available
Door Trim
Hi- Fabric + PVC
Map Pocket
Available
Door Outside Handle
Chrome Coating
Door Inside Handle
Silver Paint
Power Window
Available
Side Moulding
Beltline ; Chrome Coating
Rear View Camera
Available – Dynamic Guidelines
Wheel Type
Alloy Wheel
Wheel Size
16″
Tyre Size
215/55R16
Full Size Wheel & Tyre
Full Size
Wheel Type
Alloy Wheel
Sunroof
Available
Vanity Mirror with Illumination
Available
Antenna
Shark fin
Rain-sensing Wipers
Available
Inside Rear View Mirror
Day & Night
Material
3-Spoke Leather
Power Steering
Available
Adjustment
Tilt & Telescopic
Steering Switches
Audio + MID+ Voice Command
TGS Knob
Leather
Front Personal Lamp
Available (with Sunglasses holder)
Room Lamp
Available
Cluster Type
Supervision w/ 4.2″ TFT LCD
Speedometer
Optitron Meter + Digital Speedometer
In-dash Cluster Illumination Control
Available
Tachometer
Available
Central Door Locking
Available
Speed Sensing Door Lock
Available
Child Safety Lock
Available (Manual)
Remote Boot-Lid Opener
Available
Smart Trunk Opener
Available
Keyless Entry
Smart Key with Welcome Lamp
Burglar Alarm
Available
Push Start
Available
Seat Upholstery
Leather
Headrest
Up/Down (D+P)
Seat Height Adjuster
D+P
Power Seat – Driver (8-way) + Lumbar Support (2- Way)
Available
Centre Console Box
PVC Deluxe
Foot Rest
Available
Seat Back Pocket
Available
Headrest
Up/Down (LH/RH)
Armrest with Cup Holder
Available
Rear Seat Folding
60:40 Split folding Seats
AM / FM Radio
Available
MP3
Available
Screen
8″ Display
USB / AUX
Available
Bluetooth
Available
MyHyundai Application
Available
Number of Speakers
6
Air Conditioner
Available (Dual zone with Auto Climate Control)
Auto Defogger
Available
Rear AC Ventilation
Available
Glass (Windshield/Front Rear Door/Backlite)
Tint
Immobilizer
Available
Air Bags
Driver + Passenger
Seat Belt Front
3 Point ELR x 2 with Pretensioner and Force Limiter
Seat Belt Rear
3 Point ELR x 2 + 2 Point NR
ISOFIX Seat Anchors
Available
Auto Light Control
Available
Electronic Stability Control (ESC)
Available
Hill-Start Assist Control (HAC)
Available
Traction Control System (TCS)
Available
Auto Cruise Control
Available
Trip Computer
Available
Seat Belt Warning
Available
Battery Charger
Wireless & USB
Headlight Delay
Available
