Driven Beyond Imagination
The all-new SONATA is winning hearts and minds with its advanced technologies that actually care for your well-being. From the exterior styling to the driving dynamics, SONATA projects sensuous sportiness which served as the guiding concept throughout SONATA’s development. And because today’s drivers want a smart, personalized experience, SONATA answers the call with a suite of connectivity and convenience features. Whatever your lifestyle, SONATA is the perfect fit that will open the door to a whole new world of driving freedom and pleasure.
Every detail of the Sonata is truly new yet all of the key touchpoints feel so familiar and instinctive to use — for a feeling of total trust and confidence. The new Sonata has a striking presence achieved through a harmonized balance between proportion, architecture, styling and technology. Every curve and every bend add to the premium accent of the car.
Sonata has a way of becoming a part of you, an extension of your body. Its seats cradle you while gauges, control knobs and pedals align perfectly with eyes, hands and feet for a sense of complete confidence and total control
Sonata’s high style not just sparks the emotions but also delivers high rewards with innovative design features like the gradient hidden light technology, a sure conversation starter that adds to Sonata’s mystique.
SONATA flexes its muscle on command to keep you feeling confident and in charge in all driving situations. Whether cruising along the open highway or working through stop and go city traffic, there’s a nimble yet dynamic quality that calms, relaxes and satisfies the driver. Steering is light yet precise and the ride is silky smooth.
Step inside and discover an interior that engages and satisfies all the senses. The cabin is a visual feast projecting elegance, warmth and delivering a rich tactile experience.
Richer volume and sensory aspects based on the latest design and manufacturing technology.
Enrich your sporty and beautiful profile with rich volume and sensual lines.

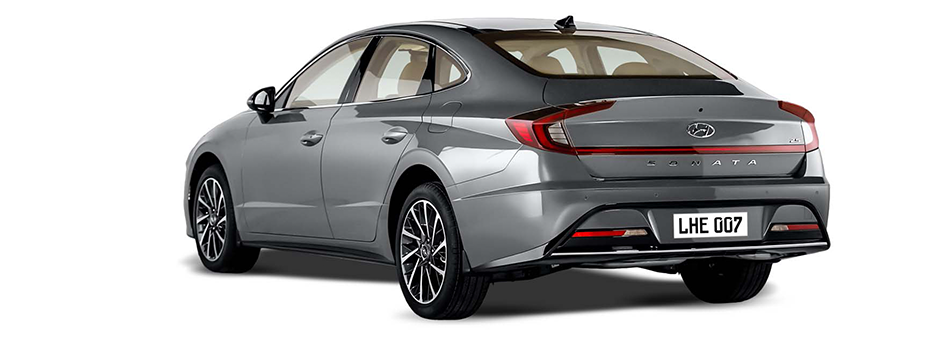

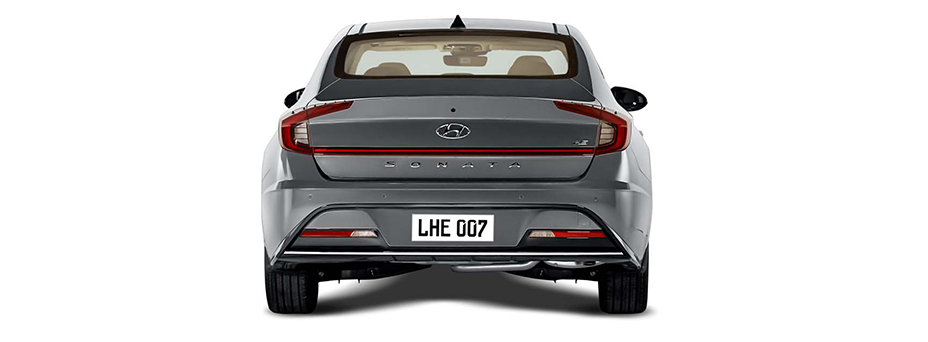

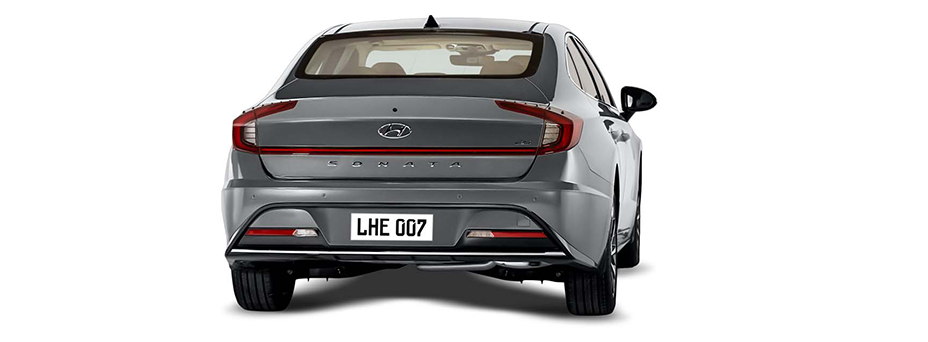

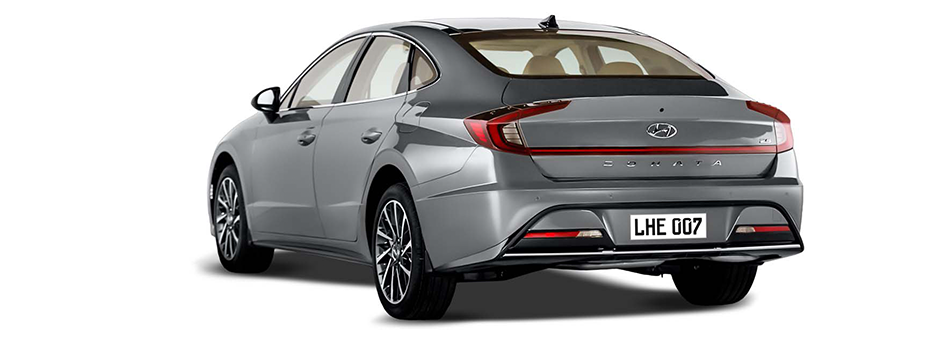

High-tech rear-view design that displays a wide horizontal line and a stable stance and future-oriented technology.
The all-new Sonata takes equally good care of its passengers with seats that bolster and support the spine’s natural S-curve so you can really feel the difference that good design makes. The relaxation comfort seat allows the front passenger to unwind by replicating the spinal support of a reclining chaise lounge to achieve a feeling of near weightlessness.
Differentiated interior space with more room and delicate details.
Sonata has a way of becoming a part of you, an extension of your body. Its seats cradle you while gauges, control knobs and pedals align perfectly with eyes, hands and feet for a sense of complete confidence and total control. The floating infotainment display offers you latest features and connectivity, while you nestle comfortably in the Leather upholstered luxury seats.
Step inside and discover an interior that engages and satisfies all the senses. The cabin is a visual feast projecting elegance, warmth and delivering a rich tactile experience.
The 2.5L Smartstream MPI engine provides excellent mid-range power for easy drivability. New Smartstream engines & gearbox delivers exceptionally enhanced driving performance and fuel economy.
Sonata dials it up with a choice of two new and improved powertrains mated to a six-speed automatic gearbox. Gear selection is controlled by a new shift-by-wire selector that makes for safer, more precise and fool-proof gear changes and its smaller footprint clears up valuable space on the center console. This same push-button convenience is brought to the electronic parking brake which comes with auto-hold that allows the driver to remove his foot from the brake pedal during stops to relax the leg muscles while maintaining brake pressure.
The highest convenience in the class is provided by new technologies related to advanced riding safety such as the Dual SRS Airbags.
Category
Product label
Model name
Seats
Sonata
Sonata 2.0
Sonata
5
Exterior L x W x H (mm)
4900 x 1860 x 1445
Wheelbase (mm)
2840
Kerb Weight (kg)
1415
Gross Vehicle Weight (kg)
1960
Minimum Turning Radius (m)
5.48
Number of Doors
4 doors
Number of Seating Rows
2 rows
Luggage Compartment Capacity (Ltr.)
510
Engine
2.0 MPi Gasoline Engine
Displacement (cc)
1999
Max Power kW (HP) / rpm
115 (152)/6200
Max Torque N-m / rpm
192/4500
Engine Type
DOHC 16-Valve w/ Dual CVVT
Cylinders
In-Line 4-Cylinder
Compression Ratio
10.3
Fuel Type
Petrol
Emission Standard
Euro 2
Fuel System
MPi
Fuel Tank Capacity (Ltr.)
60
Drive System
2WD
Transmission
6-Speed A/T
Gear
Button (Shift by Wire)
Drive Mode Select
Smart/Sport/Eco/Custom/Comfort
Front
McPherson Strut
Rear
Multi-link
Front
Disc 16″
Rear
Disc 15″
Electronic Brake-Force Distribution (EBD)
Available
Brake Assist (BA)
Available
Electronic Parking Brake – Auto Brake Hold
Available
Front Radiator Grille
Black & Chrome Coating
Mud Guard (Front & Rear)
Available
Side Skirt
Body Colour & Black Paint
Front
Body Colour with Piano Black
Rear
Body Colour with Piano Black
Front Splitter
Available (Piano Black)
Head Lamp
Tetra LED headlamps
Daytime Running Lamp
LED – Gradient Hidden Light
Rear Combination Lamp
Horizontal LED
Fog Lamps
Available
Air Fins
Available
Finish
Body Colour with Piano Black Coating
Electrically Adjustable
Available
Electrically Retractable
Available
with LED Turn Signal
Available
Door Trim
Camel Two-Tone (Leather)
Map Pocket
Available
Door Outside Handle
Body Coloured
Door Inside Handle
Chrome Coated
Power Window
Auto Up/Down & Safety (D+P)
Side Moulding
Beltline ; Chrome Coating
Rear View Camera
Available – Dynamic Guidelines
Wheel Type
Alloy Wheel
Wheel Size
18″
Tyre Size
235/45R18
Full Size Wheel & Tyre
Full Size
Wheel Type
Alloy Wheel
Sunroof
Panoramic Sunroof
Vanity Mirror with Illumination
Available
Antenna
Shark fin
Rain-sensing Wipers
Available
Inside Rear View Mirror
ECM
Material
4-Spoke Leather
Power Steering
Available
Adjustment
Tilt & Telescopic
Steering Switches
Audio + MID + Voice Control + Cruise Control
Front Personal Lamp
LED
Room Lamp
LED
Cluster Type
12.3 Inch High Resolution TFT LCD
Illumination Dimmer
Available
Central Door Locking
Available
Speed Sensing Door Lock
Available
Child Safety Lock
Available (Auto)
Remote Boot-Lid Opener
Available
Smart Trunk Opener
Available
Keyless Entry
Smart Key with Welcome Lamp
Burglar Alarm
Available
Push Start Button
Available
Remote Engine Start
Available
Seat Upholstery
Leather
Headrest
Up/Down (D+P)
Seat Height Adjuster
Powered (Driver Only)
Power Seat – Driver (8-way) + Passenger (4-way)
Available
Lumbar Support
Powered (Driver Only)
Centre Console Box
Available
Foot Rest
Available
Seat Back Pocket
Available (D+P)
Headrest
Up/Down (LH/RH/CTR)
Armrest with Cup Holder
Available
Rear Seat Folding
60:40 Split folding Seats
Rear Side Door Curtain
Available
AM / FM Radio
Available
MP3
Available
Screen
8″ Display
USB / AUX
Available
Bluetooth
Available (w/Voice Recognition)
Smartphone Connectivity
Wired Android Auto & Apple CarPlay
Number of Speakers
6
Air Conditioner
Available (Dual zone with Auto Climate Control)
Auto Defogger
Available
Rear AC Ventilation
Available
Anti-Lock Braking System (ABS)
Available
Immobilizer
Available
Air Bags
Driver + Passenger
Seat Belt Front
3 Point ELR x 2 with Pretensioner and Force Limiter
Seat Belt Rear
3 Point ELR x 3
ISOFIX Seat Anchors
Available
Auto Light Control
Available
Electronic Stability Control (ESC)
Available
Hill-Start Assist Control (HAC)
Available
Traction Control System (TCS)
Available
Auto Cruise Control
Available
Trip Computer
Available
Seat Belt Warning
Available
Battery Charger
Wireless & USB
Headlight Delay
Available
Rear Occupant Alert
Available
Parking Sensor
Front & Rear
Paddle Shifters
Available
Category
Product label
Model name
Seats
Sonata
Sonata 2.5
Sonata
5
Exterior L x W x H (mm)
4785 x 1900 x 1710
Wheelbase (mm)
2765
Ground Clearance (mm)
176
Kerb Weight (kg)
1780-1918
Gross Vehicle Weight (kg)
2580
Minimum Turning Radius (m)
5.7
Number of Doors
5 doors
Seating Capacity
7 persons
Number of Seating Rows
3 rows
Luggage Compartment Capacity (Ltr.)
782 (max)
Exterior L x W x H (mm)
4785 x 1900 x 1710
Wheelbase (mm)
2765
Ground Clearance (mm)
176
Kerb Weight (kg)
1780-1918
Gross Vehicle Weight (kg)
2580
Minimum Turning Radius (m)
5.7
Number of Doors
5 doors
Seating Capacity
7 persons
Number of Seating Rows
3 rows
Luggage Compartment Capacity (Ltr.)
782 (max)
Engine
Smartstream 1.6 T-GDi HEV Engine
Displacement (cc)
1598
Max Power kW (HP) / rpm
169(227)/5500
Max Torque N-m / rpm
350/1000-4400
Cylinders
In-Line 4-Cylinder
Compression Ratio
10.5
Intake System
Turbo Charged
Fuel Type
Petrol
Emission Standard
Euro 5
Fuel System
GDI
Fuel Tank Capacity (Ltr.)
67
Drive System
FWD
Transmission
6-Speed A/T
Drive Mode Select
Smart/Eco/Sport
Multi-Terrain Mode
X
Front
MacPherson Strut Type
Rear
Multi-link Type
Front
17″ Disc (Ventilated)
Rear
17″ Disc (Ventilated)
Anti-Lock Braking System (ABS)
○
Electronic Brake-Force Distribution (EBD)
○
Brake Assist (BA)
○
Electronic Stability Control (ESC)
○
Downhill Brake Control (DBC)
○
Electronic Stability Control (ESC)
○
Hill-Start Assist Control (HAC)
○
Traction Control System (TC/TCS)
○
Electronic Parking Brake (EPB)
○
Differential Lock
X
Front Radiator Grille
Black & Chrome Coating
Mud Guard (Front & Rear)
○
Front
Two tone
Rear
Two tone
Head Lamp
LED Lamps (Multi MFR)
Daytime Running Lamp
LED
Auto Light Control
○
Welcome Lamps
○
Rear Combination Lamp
LED
High Mount Stop Lamp
LED (on Spoiler)
Rear Fog Lamps
LED
Finish
Two tone
Electrically Adjustable
○
Electrically Retractable
○ (Heated)
with Turn Signal
○
with Puddle Lamps
○
Door Trim
Single Tone
Map Pocket
○
Door Outside Handle
Body Color
Door Inside Handle
Chrome
Power Window
○
Side Moulding
Chrome
Rear View Camera
○
Front View Camera
X
Surround View
X
Wheel Type
Alloy Wheel
Wheel Size
19″
Tyre Size
235/55 R19
Tyre pressure monitoring System
○
Full Size Wheel & Tyre
Full Size
Wheel Type
Alloy Wheel
Sunroof
○ (Panoramic)
Sun Visor | Vanity Mirror with Illumination
○ (D+P)
Roof Rails
○ (Chrome)
Antenna
Shark fin
Inside Rear View Mirror
ECM
Material
4-Spoke Leather Wrapped + Heated
Power Steering
○
Adjustment
Tilt & Telescopic
Steering Switches
Audio + MID + Voice Control + Cruise Control
Front Personal Lamp
○ (LED)
Ambient Light
○
Rear Reading Lamp
○ (LED)
Cargo Lamp
○ (Bulb)
Cluster Type
12.3″ Super Vision + Full TFT LCD + Rheostat
Head-up Display
X
Central Door Locking
○
Speed Sensing Door Lock
○
Child Safety Lock
○ (Manual)
Powered Tail Gate
X
Smart Tail Gate
○
Keyless Entry
Smart Key
Burglar Alarm
○
Push Start Button
○
Immobilizer
○
Seat Upholstery
Leather
Headrest
Up/Down
Powered Seats
Driver (8-way) + Passenger (8-way)
Lumbar Support
2-way Powered (Driver Only)
Memory Seats
X
Heated Seats
○
Ventilated Seats
X
Centre Console Box
○
Foot Rest
○
Seat Back Pocket
○
Headrest
Up/Down (LH/RH/Centre)
Armrest with Cup Holder
○
Rear Seat Folding
60:40 Folding
Type
50:50 Folding
Headrest
Up/Down (LH/RH)
AM / FM Radio
○
MP3
○
AVN Screen
8″ Display
USB / AUX
USB (x5)
Bluetooth
○
Android Auto & Apple Car Play
○ (Wireless)
Number of Speakers
6
Air Conditioner
○ Auto Dual Zone
Auto Defogger
○
Rear AC Ventilation (2nd Row)
○
3rd Row AC
X
Parking Sensors
○ (Front + Rear)
Steering Wheel Remote Control
○
Air Bags
6 (Front, Side & Curtain)
Auto Cruise Control
○
Seat Belt Warning
○ (Driver Only)
Battery Charger
Wireless Charger + 2 power outlets (180W)
Remote Engine Start
○
Paddle Shifters
○
Rear Cross-Traffic Collision Warning (RCCW)
X
Blind Spot View Monitor
X
Blind Spot Collision Warning
X
Rear Occupant Alert
○ (without sensor)
Safe Exit Alert
X
Rain-sensing Wipers
○
Engine
Smart Stream 2.5 MPi
Displacement (cc)
2497
Max Power kW (HP) / rpm
132 (180)/6200
Max Torque N-m / rpm
232/4500
Engine Type
Smart Stream
Cylinders
In-Line 4-Cylinder
Compression Ratio
10.5:1
Fuel Type
Petrol
Emission Standard
Euro 2
Fuel System
MPi
Fuel Tank Capacity (Ltr.)
60
Drive System
2WD
Transmission
6-Speed A/T
Gear
Button (Shift by Wire)
Drive Mode Select
Smart/Sport/Eco/Custom/Comfort
Front
McPherson Strut
Rear
Multi-link
Front
Disc 16″
Rear
Disc 15″
Electronic Brake-Force Distribution (EBD)
Available
Brake Assist (BA)
Available
Electronic Parking Brake – Auto Brake Hold
Available
Front Radiator Grille
Black & Chrome Coating
Mud Guard (Front & Rear)
Available
Side Skirt
Body Colour & Black Paint
Front
Body Colour with Piano Black
Rear
Body Colour with Piano Black
Front Splitter
Available (Piano Black)
Head Lamp
Tetra LED headlamps
Daytime Running Lamp
LED – Gradient Hidden Light
Rear Combination Lamp
Horizontal LED
Fog Lamps
Available
Air Fins
Available
Finish
Body Colour with Piano Black Coating
Electrically Adjustable
Available
Electrically Retractable
Available
with LED Turn Signal
Available
Door Trim
Camel Two-Tone (Leather)
Map Pocket
Available
Door Outside Handle
Body Coloured
Door Inside Handle
Chrome Coated
Power Window
Auto Up/Down & Safety (D+P)
Side Moulding
Beltline ; Chrome Coating
Rear View Camera
Available – Dynamic Guidelines
Wheel Type
Alloy Wheel
Wheel Size
18″
Tyre Size
235/45R18
Full Size Wheel & Tyre
Full Size
Wheel Type
Alloy Wheel
Sunroof
Panoramic Sunroof
Vanity Mirror with Illumination
Available
Antenna
Shark fin
Rain-sensing Wipers
Available
Inside Rear View Mirror
ECM
Material
4-Spoke Leather
Power Steering
Available
Adjustment
Tilt & Telescopic
Steering Switches
Audio + MID + Voice Control + Cruise Control
Front Personal Lamp
LED
Room Lamp
LED
Cluster Type
12.3 Inch High Resolution TFT LCD
Illumination Dimmer
Available
Head-up-Display
Available
Central Door Locking
Available
Speed Sensing Door Lock
Available
Child Safety Lock
Available (Auto)
Remote Boot-Lid Opener
Available
Smart Trunk Opener
Available
Keyless Entry
Smart Key with Welcome Lamp
Burglar Alarm
Available
Push Start Button
Available
Remote Engine Start
Available
Seat Upholstery
Leather
Headrest
Up/Down (D+P)
Seat Height Adjuster
Powered (Driver Only)
Power Seat – Driver (8-way) + Passenger (4-way)
Available
Lumbar Support
Powered (Driver Only)
Centre Console Box
Available
Foot Rest
Available
Seat Back Pocket
Available (D+P)
Headrest
Up/Down (LH/RH/CTR)
Armrest with Cup Holder
Available
Rear Seat Folding
60:40 Split folding Seats
Rear Side Door Curtain
Available
Rear Powered Sunshade
Available
AM / FM Radio
Available
MP3
Available
Screen
8″ Display
USB / AUX
Available
Bluetooth
Available (w/Voice Recognition)
Smartphone Connectivity
Wired Android Auto & Apple CarPlay
Number of Speakers
6
Air Conditioner
Available (Dual zone with Auto Climate Control)
Auto Defogger
Available
Rear AC Ventilation
Available
Anti-Lock Braking System (ABS)
Available
Immobilizer
Available
Air Bags
Driver + Passenger + Front Seat Side + Curtain
Seat Belt Front
3 Point ELR x 2 with Pretensioner and Force Limiter
Seat Belt Rear
3 Point ELR x 3
ISOFIX Seat Anchors
Available
Auto Light Control
Available
Electronic Stability Control (ESC)
Available
Hill-Start Assist Control (HAC)
Available
Traction Control System (TCS)
Available
Auto Cruise Control
Available
Trip Computer
Available
Seat Belt Warning
Available
Battery Charger
Wireless & USB
Headlight Delay
Available
Rear Occupant Alert
Available
Parking Sensor
Front & Rear
Paddle Shifters
Available
